Easy to Use for Optimal Patient Compliance and Efficacy

Using the ODIN 1® is safe and simple

Prepping the single-piece ODIN 1® electrodes

1) Attach electrodes to intact skin on either both wrists or both ankles, depending on general location of pain to be treated

2) Easily attach electrode cables to device with one hand

Touch and go: Intuitive, consistent, and effective operation

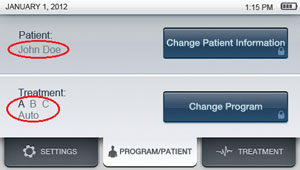

3) Establish the right protocol: Select 1 of 24 different treatment programs depending on the patient's current medical condition to customize therapy. You can also enter patient-specific information.

3) Establish the right protocol: Select 1 of 24 different treatment programs depending on the patient’s current medical condition to customize therapy. You can also enter patient-specific information.

4) Press “TREATMENT” and the device will automatically check for proper electrode setup before beginning the treatment.

4) Press “TREATMENT” and the device will automatically check for proper electrode setup before beginning the treatment.

Starting and adjusting treatment

5) Start and record: Upon initiation, ODIN 1® automatically monitors and records key patient electrical response to therapy and adjusts current flow accordingly.

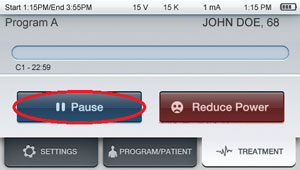

6) Adjust on the fly: The Pause option allows temporary disruption of current. The Reduce Power option enables the patient to reduce current in the unlikely case of temporary, mild discomfort.

User-friendly audio and screen alerts

7) Feel confident with built-in troubleshooting: ODIN 1® performs an electrode integrity test prior to every treatment to ensure proper electrode connection; the system will also sense and alert user of common electrode problems during treatment.

Integrated details foster patient adherence

  • On-screen tutorial provides step-by-step electrode troubleshooting instructions
  • Large, durable lead wire connectors are easy to insert into the ODIN 1®
  • Tangle-resistant wires cannot be accidentally dislodged
  • Waterproof and impact-resistant
  • Self-contained, no-leak electrodes
  • Lightweight (<12 oz.) and portable (5.8” x 3.5” x 1.2”)
  • Does not interfere with your activities of daily living.
    Easily attaches to your belt via a clip or wearable with a carrying case.
  • One-handed operation

This device is a prescription device and may only be used under the order of a licensed provider.

Adverse Reactions

Patients may experience skin irritation beneath the electrodes applied to the skin. Patients should stop using the device and consult their physicians if they experience adverse reactions from the device.

Contraindications

Do not use this device on patients who have:

  • A cardiac or demand-type pacemaker, implanted defibrillator, or other implanted metallic electronic device, because this may cause electric shock, burns, electrical interference, or death
  • Pregnancy
  • Known neoplasm

Device should not be applied over the carotid sinus nerves, particularly in patients with known sensitivity to the carotid sinus reflex.

For complete prescribing information, please see the user's manual.
